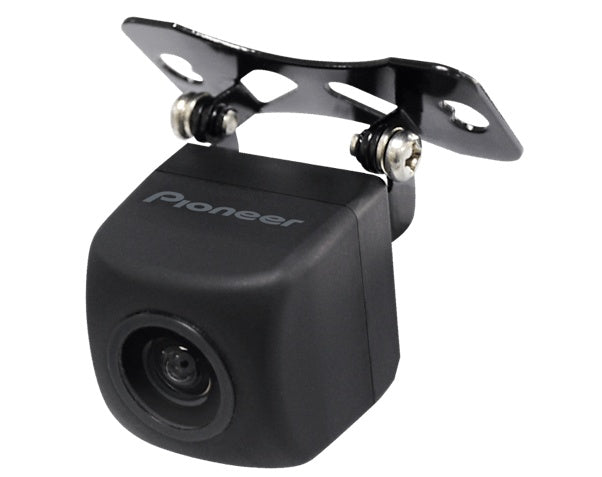

Pioneer ND-BC02 Car Accessories
Pioneer ND-BC02 Car Accessories
Regular price
Rs. 7,390.00
Regular price
Sale price
Rs. 7,390.00
Taxes included.
Quantity
Couldn't load pickup availability
Good to know before you go
Available to orderModel / SKU: PIO-ND-BC02
Enter your address at checkout to see delivery options and charges.
Check dimensions, connections and vehicle compatibility before ordering. Review the listing for included accessories.
Pioneer ND-BC02 Car Accessories.
Universal Rear-View Camera for your car.
Specifications
| Power source | 12.0 V DC |
|---|---|
| Max. current consumption | 100 mA or Less |
| Output video | Mirror image((for rear view confirmation) |
| Sensor | 1/3-inch colour CMOS sensor |
| No. of pixels | effective no. of pixels roughly 345 600 |
| Lens | Wide-angle, focal length f = 1.62m, F value 2 |
| Angle of view | Horizontal: approx. 120°,Vertical: approx. 100° |
| Scanning system | Line by line |
| Synchronizing system | Internal synchronization |
| Signal-to-noise ratio | 48 dB or more |
| Horizontal resolution | Approx. 420 TV lines |
| Illumination range | Approx. 0.5 lux to 100 000 lux |
| Image output | NTSC compatible 1 Vp-p (75Ω) |
| Operation temperature range | -30°C to +70°C |
| Storage temperature range | -40°C to +85°C |
| Dimensions (W x H x D) | 23.5 mm x 23.5 mm x 24.0 mm |
| Weight | 168 g |
| Rear view camera | 1.3 m |
| RCA / Power supply cable | 7 m / 0.3 m |
