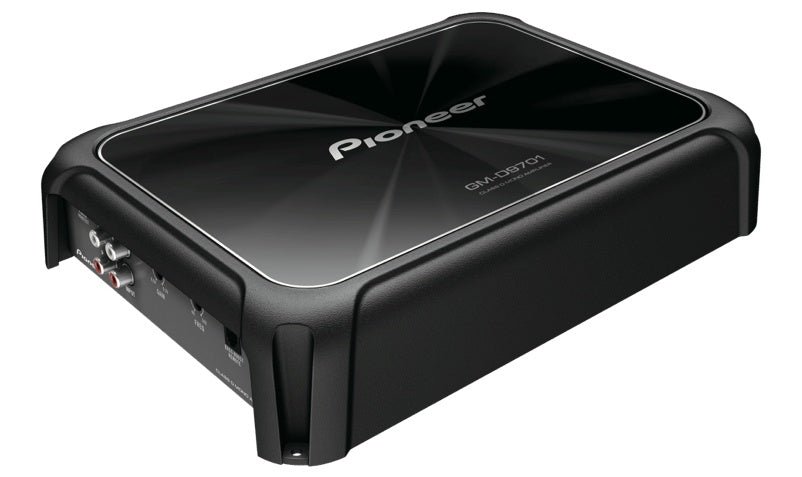

Pioneer GM-D9701 Car Amplifiers

Pioneer GM-D9701 Car Amplifiers

Rs. 38,990.00
Rs. 38,990.00
Sale Sold out
Taxes included.

Good to know before you go

Available to orderModel / SKU: PIO-GM-D9701

Enter your address at checkout to see delivery options and charges.

Check dimensions, connections and vehicle compatibility before ordering. Review the listing for included accessories.

Pioneer GM-D9701 Car Amplifiers.

Mono 2400W Class-D Car Amp, with Bass Boost Remote.

  • Variable LPF
  • Automatic Signal Sensing & Turn ON

Specifications

No. of Channels Mono
Max. Wattage (4 ohms) 1000Wx1
Max. Wattage (2 ohms) 1600Wx1
Max. Wattage (1 ohm) 2400Wx1
Wattage RMS (4 ohm <= 1% THD+N) 500W (20-240Hz)
Wattage RMS (2 ohm <= 1% THD+N) 800W (100Hz)
Wattage RMS (1 ohm <= 1% THD+N) 1200W (100Hz)
Wattage RMS (4 ohm, Bridged) 0
Distortion (100Hz, 4 ohm, 10w) < 0.5%
S/N Ratio (IEC-A/IHF-A N/W) >100dB
Frequency response 10-240Hz (0,-3dB)
Max. Input Level (RCA) 6.5V (Low)
Max. Input Level (SP-Input) 16v (High)
Load Impedance 1-8 ohm
Amplifier Class Class D
Transistor MOSFET
Input level control (RCA-IN) (200mv-6.5v)
Input level control (SP-IN) (0.8v-16v) (High)
Frequency 50Hz
Bass Boost 0-18dB
Bass Boost Remote Yes
Low Pass Filter 40-240Hz, -12dB/oct
High Pass Filter 0
Protection Indicator RED (Side Panel)
Power Indicator BLUE (Side Panel)
Speaker input cable 20cm
Bass Remote Cord 5m
Hex Wrench Yes
Mounting screws 4 piece
Owner's manual Yes
WARRANTY CARD Yes
Chassis size (W x H x D) 302x60x215 mm
