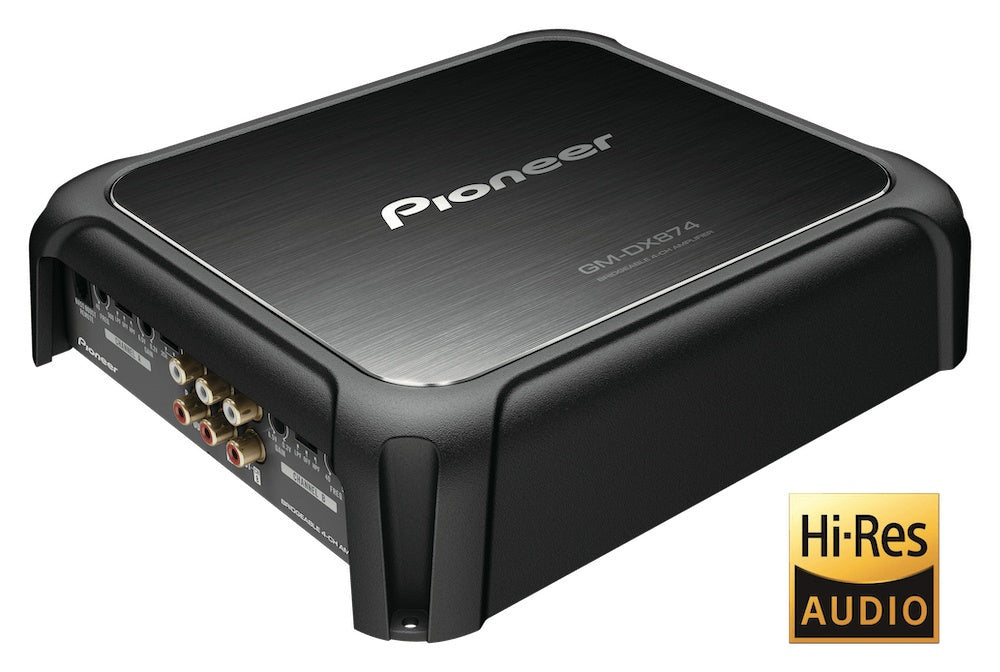

Pioneer GM-DX874 Car Amplifiers
Pioneer GM-DX874 Car Amplifiers
Regular price
Rs. 35,890.00
Regular price
Sale price
Rs. 35,890.00
Taxes included.
Quantity
Couldn't load pickup availability
Good to know before you go
Available to orderModel / SKU: PIO-GM-DX874
Enter your address at checkout to see delivery options and charges.
Check dimensions, connections and vehicle compatibility before ordering. Review the listing for included accessories.
Pioneer GM-DX874 Car Amplifiers.
Class-D 4-Channel Bridgeable Amplifier with Wired Bass Boost Remote.
- New Circuit Board
- Variable LPF
Specifications
| No. of Channels | 4/3/2 |
|---|---|
| Max. Wattage (4 ohms) | 200W X 4 |
| Max. Wattage (2 ohms) | 300W X 4 |
| Max. Wattage (1 ohm) | 1200W (Total) |
| Wattage RMS (4 ohm <= 1% THD+N) | 100W x 4 (20-20kHz) |
| Wattage RMS (2 ohm <= 1% THD+N) | 150W x 4 (1kHz) |
| Wattage RMS (1 ohm <= 1% THD+N) | >125WX4 (1kHz) |
| Wattage RMS (4 ohm, Bridged) | 300W x 2 (1kHz) |
| Distortion (100Hz, 4 ohm, 10w) | < 0.05% |
| S/N Ratio (IEC-A/IHF-A N/W) | > 95dB |
| Frequency response | 10-50kHz (0,-3dB) |
| Max. Input Level (RCA) | 6.5V (Low) |
| Max. Input Level (SP-Input) | 16v (High) |
| Load Impedance | 1-8 ohm |
| Amplifier Class | CLASS D |
| Transistor | MOSFET |
| Input level control (RCA-IN) | (200mv-6.5v) |
| Input level control (SP-IN) | (0.8v-16v) (High) |
| Frequency | 50Hz (CH-B) |
| Bass Boost | 0-18dB |
| Bass Boost Remote | Yes (CH-B) |
| Low Pass Filter | 40-500Hz, -12dB/oct |
| High Pass Filter | 40-500Hz, -12dB/oct |
| Protection Indicator | RED (Side Panel) |
| Power Indicator | BLUE (Side Panel) |
| High Quality Parts | Yes |
| Hi-res Audio | Yes |
| Speaker input cable | 20cm |
| Bass Remote Cord | 5m |
| Hex Wrench | Yes |
| Mounting screws | 4 piece |
| Owner's manual | Yes |
| WARRANTY CARD | Yes |
| Chassis size (W x H x D) | 252 mm x 60 mm x 215 mm |
